| TYPE | DESCRIPTION |

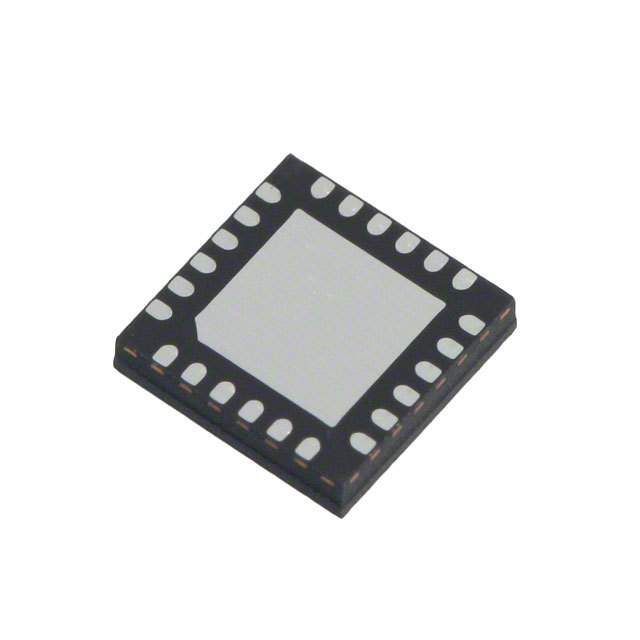

| Part Number: | MC10XS3435DHFK |
| Description: | IC SWITCH HIGH SIDE QUAD 24PQFN |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Package / Case | 24-PowerQFN |
| Output Configuration | High Side |
| Voltage - Load | 6 V ~ 20 V |
| Current - Output (Max) | 6A |
| Rds On (Typ) | 10 mOhm (Max), 35 mOhm (Max) |
| Interface | SPI |
| Supplier Device Package | 24-PQFN (12x12) |
| Meta Part Number | MC10XS3435DHFK-ND |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Type | N-Channel |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Base Part Number | MC10XS3435 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Switch Type | General Purpose |
| Ratio - Input:Output | 1:1 |
| Voltage - Supply (Vcc/Vdd) | 3 V ~ 5.5 V |
| Packaging | Tray |
| Other Names | 934070531557 |
| Input Type | - |
| Series | - |
| Number of Outputs | 4 |
| Features | Internal PWM, Slew Rate Controlled, Watchdog Timer |
