Категория
PMIC - Power Distribution Switches, Load Drivers
Производитель
STMicroelectronics
RoHS
YES
Certification
Доставка
Оплата
| TYPE | DESCRIPTION |
| Part Number: | VN808CM |
| Description: | IC DRIVER OCTAL HISIDE 36PWRSOIC |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Switch Type | General Purpose |
| Output Configuration | High Side |
| Interface | On/Off |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Voltage - Load | 10.5 V ~ 45 V |
| Packaging | Tube |
| Rds On (Typ) | 160 mOhm (Max) |
| Number of Outputs | 8 |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |

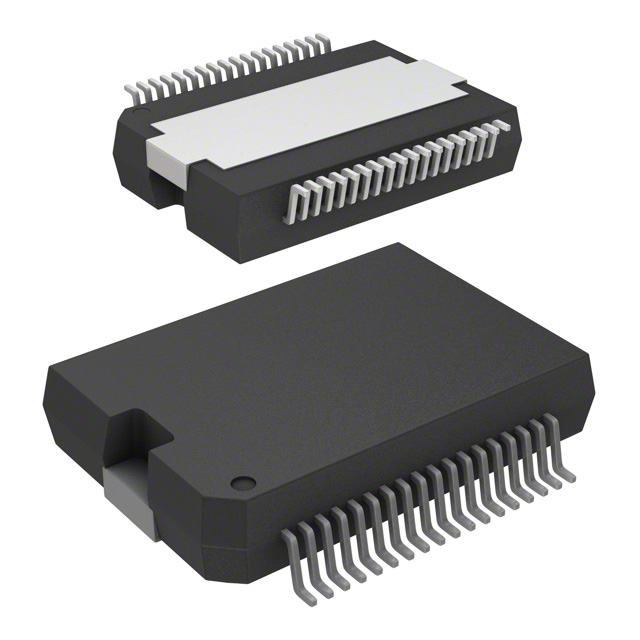

| Package / Case | 36-BSSOP (0.433, 11.00mm Width) Exposed Pad |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Type | N-Channel |
| Base Part Number | VN808 |
| Series | VIPower™ |
| Input Type | Non-Inverting |
| Other Names | 497-4495-5 |
| Ratio - Input:Output | 1:1 |
| Meta Part Number | 497-4495-5-ND |
| Features | Auto Restart, Status Flag |
| Supplier Device Package | PowerSO-36 |
| Current - Output (Max) | 700mA |
| Fault Protection | Current Limiting (Fixed), Over Temperature |
Таблицы данных: Work in prgress, stay tuned!
