| TYPE | DESCRIPTION |

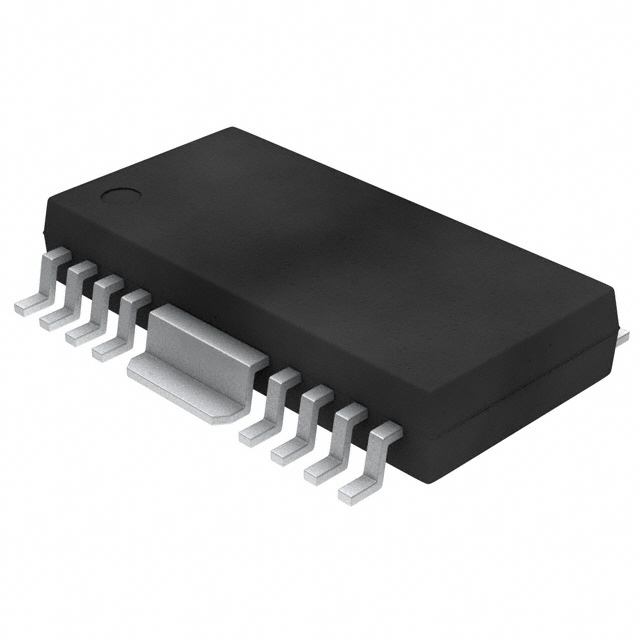

| Part Number: | TBD62308AFG,EL |
| Description: | IC LOAD SWITCH 16HSOP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Other Names | TBD62308AFG(Z,EL) "######"TBD62308AFGELTR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Manufacturer Standard Lead Time | 16 Weeks |
| Meta Part Number | TBD62308AFGELTR-ND |
| Rds On (Typ) | 370 mOhm |
| Package / Case | 16-BSOP (0.252, 6.40mm Width) + 2 Heat Tabs |
| Switch Type | General Purpose |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Fault Protection | - |
| Packaging | Tape & Reel (TR) |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Input Type | Inverting |
| Series | - |
| Ratio - Input:Output | 1:1 |
| Output Type | N-Channel |
| Voltage - Load | 50V (Max) |
| Supplier Device Package | 16-HSOP |
| Features | - |
| Current - Output (Max) | 1.5A |
| Number of Outputs | 4 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | Low Side |
| Interface | On/Off |
Таблицы данных: Work in prgress, stay tuned!
