Категория
Transistors - FETs, MOSFETs - Single
Производитель
STMicroelectronics
RoHS
YES
Certification
Доставка
Оплата
| TYPE | DESCRIPTION |
| Part Number: | STF17N80K5 |
| Description: | MOSFET N-CH 800V 14A TO220FP |
| Lead Free Status / RoHS Status: | |
| FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Rds On (Max) @ Id, Vgs | 340 mOhm @ 7A, 10V |
| Packaging | Tube |
| Manufacturer Standard Lead Time | 42 Weeks |
| Mounting Type | Through Hole |
| Power Dissipation (Max) | 30W (Tc) |
| Drain to Source Voltage (Vdss) | 800V |
| Current - Continuous Drain (Id) @ 25°C | 14A (Tc) |
| Series | MDmesh™ K5 |
| Technology | MOSFET (Metal Oxide) |
| Gate Charge (Qg) (Max) @ Vgs | 26nC @ 10V |
| FET Type | N-Channel |
| Detailed Description | N-Channel 800V 14A (Tc) 30W (Tc) Through Hole TO-220FP |

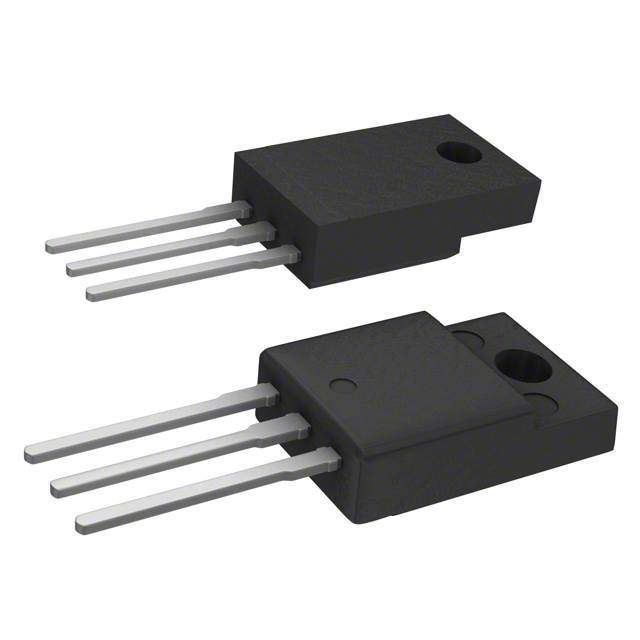

| Package / Case | TO-220-3 Full Pack |
| Input Capacitance (Ciss) (Max) @ Vds | 866pF @ 100V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Meta Part Number | STF17N80K5-ND |
| Supplier Device Package | TO-220FP |
| Vgs(th) (Max) @ Id | 5V @ 250µA |
| Vgs (Max) | ±30V |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Таблицы данных: Work in prgress, stay tuned!
