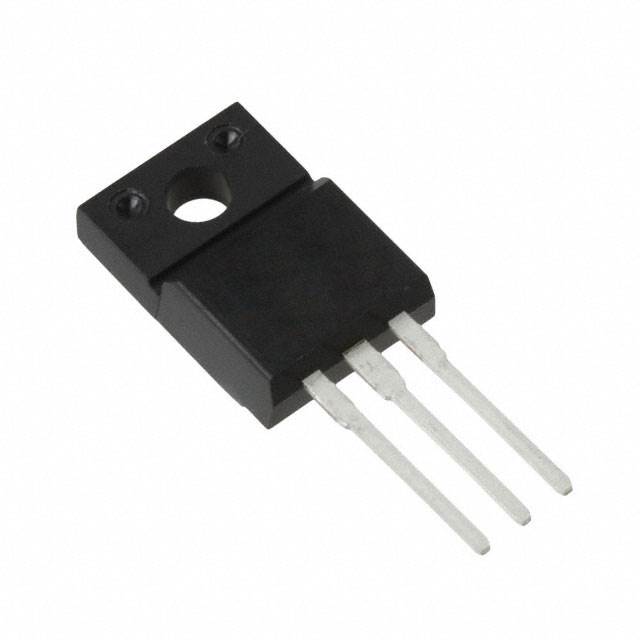

.jpg "IPA65R099C6XKSA1")
| TYPE | DESCRIPTION |
| Part Number: | IPA65R099C6XKSA1 |
| Description: | MOSFET N-CH 650V 38A TO220 |
| Lead Free Status / RoHS Status: | |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Packaging | Tube |
| Input Capacitance (Ciss) (Max) @ Vds | 2780pF @ 100V |
| Rds On (Max) @ Id, Vgs | 99 mOhm @ 12.8A, 10V |
| Power Dissipation (Max) | 35W (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Other Names | SP000895220 |
| Current - Continuous Drain (Id) @ 25°C | 38A (Tc) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Meta Part Number | IPA65R099C6XKSA1-ND |
| Technology | MOSFET (Metal Oxide) |
| Detailed Description | N-Channel 650V 38A (Tc) 35W (Tc) Through Hole PG-TO220 Full Pack |
| Package / Case | TO-220-3 Full Pack |
| Drain to Source Voltage (Vdss) | 650V |
| Supplier Device Package | PG-TO220 Full Pack |
| FET Type | N-Channel |
| Series | CoolMOS™ |
| Gate Charge (Qg) (Max) @ Vgs | 127nC @ 10V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Vgs (Max) | ±20V |
| FET Feature | - |
| Vgs(th) (Max) @ Id | 3.5V @ 1.2mA |
