| TYPE | DESCRIPTION |

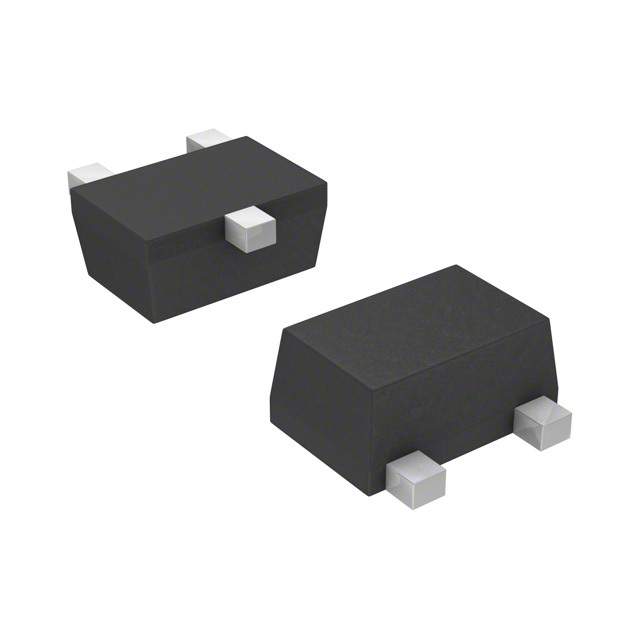

| Part Number: | BCR 141F E6327 |
| Description: | TRANS PREBIAS NPN 250MW TSFP-3 |
| Lead Free Status / RoHS Status: | |
| Frequency - Transition | 130MHz |
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| Transistor Type | NPN - Pre-Biased |
| Detailed Description | Pre-Biased Bipolar Transistor (BJT) NPN - Pre-Biased 50V 100mA 130MHz 250mW Surface Mount PG-TSFP-3 |
| Resistor - Emitter Base (R2) | 22 kOhms |
| Mounting Type | Surface Mount |
| Resistor - Base (R1) | 22 kOhms |
| Package / Case | SOT-723 |
| Series | - |
| Other Names | BCR 141F E6327-ND BCR141FE6327 BCR141FE6327XT SP000013049 |
| Voltage - Collector Emitter Breakdown (Max) | 50V |
| Current - Collector (Ic) (Max) | 100mA |
| Power - Max | 250mW |
| Packaging | Tape & Reel (TR) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 50 @ 5mA, 5V |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 500µA, 10mA |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Base Part Number | BCR141 |
| Meta Part Number | BCR141FE6327-ND |
| Supplier Device Package | PG-TSFP-3 |
