Категория
Transistors - Bipolar (BJT) - Single, Pre-Biased
Производитель
AMI Semiconductor/onsemi
RoHS
YES
Certification
Доставка
Оплата
| TYPE | DESCRIPTION |
| Part Number: | SMMUN2215LT1G |
| Description: | TRANS PREBIAS NPN 0.246W SOT-23 |
| Lead Free Status / RoHS Status: | |
| Series | - |
| Detailed Description | Pre-Biased Bipolar Transistor (BJT) NPN - Pre-Biased 50V 100mA 246mW Surface Mount SOT-23-3 (TO-236) |
| Current - Collector Cutoff (Max) | 500nA |
| Manufacturer Standard Lead Time | 36 Weeks |
| Voltage - Collector Emitter Breakdown (Max) | 50V |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 160 @ 5mA, 10V |
| Meta Part Number | SMMUN2215LT1G-ND |
| Mounting Type | Surface Mount |

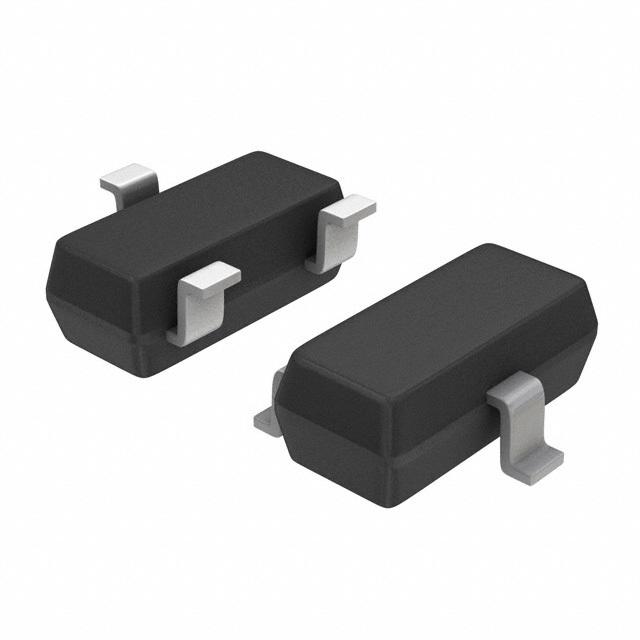

| Supplier Device Package | SOT-23-3 (TO-236) |
| Packaging | Tape & Reel (TR) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Resistor - Base (R1) | 10 kOhms |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Power - Max | 246mW |
| Vce Saturation (Max) @ Ib, Ic | 250mV @ 1mA, 10mA |
| Base Part Number | MMUN22**L |
| Current - Collector (Ic) (Max) | 100mA |
| Transistor Type | NPN - Pre-Biased |
Таблицы данных: Work in prgress, stay tuned!
