Категория
PMIC - AC DC Converters, Offline Switchers
Производитель
Power Integrations
RoHS
YES
Certification
Доставка
Оплата
| TYPE | DESCRIPTION |

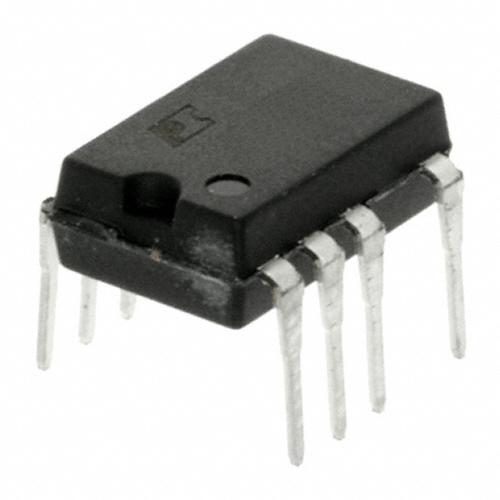

| Part Number: | TOP253MN |
| Description: | IC OFFLINE SWIT PROG OVP 10CSDIP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Other Names | 596-1205-5 |
| Manufacturer Standard Lead Time | 16 Weeks |
| Frequency - Switching | 66kHz |
| Mounting Type | Through Hole |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage |
| Power (Watts) | 25W |
| Control Features | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Packaging | Tube |
| Duty Cycle | 78% |
| Voltage - Supply (Vcc/Vdd) | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Supplier Device Package | SDIP-10C |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Series | TOPSwitch®-HX |
| Package / Case | 10-SDIP (0.300, 7.62mm), 9 Leads |
| Topology | Flyback |
| Meta Part Number | 596-1205-5-ND |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Detailed Description | Converter Offline Flyback Topology 66kHz SDIP-10C |
| Output Isolation | Isolated |
Таблицы данных: Work in prgress, stay tuned!
