Категория
Transistors - Bipolar (BJT) - Arrays, Pre-Biased
Производитель
AMI Semiconductor/onsemi
RoHS
YES
Certification
Доставка
Оплата
| TYPE | DESCRIPTION |

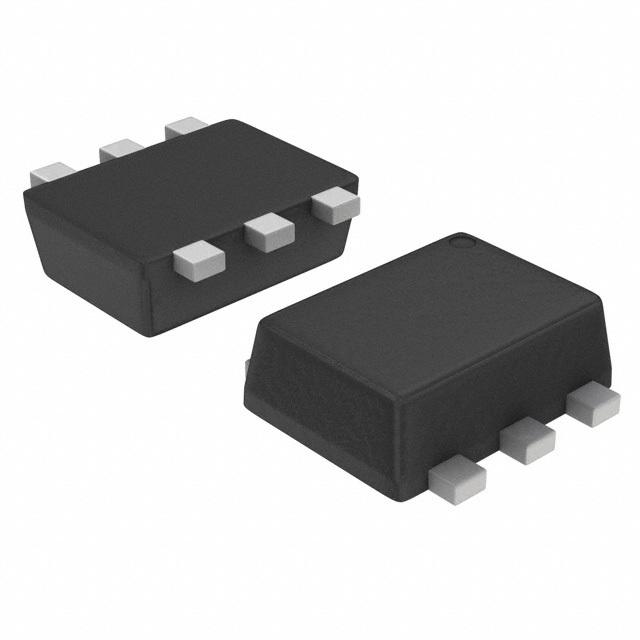

| Part Number: | NSBC123JPDXV6T1G |
| Description: | TRANS PREBIAS NPN/PNP SOT563 |
| Lead Free Status / RoHS Status: | |
| Manufacturer Standard Lead Time | 4 Weeks |
| Supplier Device Package | SOT-563 |
| Power - Max | 500mW |
| Frequency - Transition | - |
| Other Names | NSBC123JPDXV6T1GOS NSBC123JPDXV6T1GOS-ND NSBC123JPDXV6T1GOSTR |
| Base Part Number | NSBC1* |
| Detailed Description | Pre-Biased Bipolar Transistor (BJT) 1 NPN, 1 PNP - Pre-Biased (Dual) 50V 100mA 500mW Surface Mount SOT-563 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Voltage - Collector Emitter Breakdown (Max) | 50V |
| Mounting Type | Surface Mount |
| Resistor - Emitter Base (R2) | 47 kOhms |
| Meta Part Number | NSBC123JPDXV6T1GOSTR-ND |
| Vce Saturation (Max) @ Ib, Ic | 250mV @ 300µA, 10mA |
| Series | - |
| Resistor - Base (R1) | 2.2 kOhms |
| Current - Collector Cutoff (Max) | 500nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 80 @ 5mA, 10V |
| Transistor Type | 1 NPN, 1 PNP - Pre-Biased (Dual) |
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-563, SOT-666 |
| Current - Collector (Ic) (Max) | 100mA |
Таблицы данных: Work in prgress, stay tuned!
