| TYPE | DESCRIPTION |
| Part Number: | MC8641DVU1500KE |
| Description: | IC MPU MPC86XX 1.5GHZ 1023FCCBGA |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Packaging | Tray |
| SATA | - |
| Operating Temperature | 0°C ~ 105°C (TA) |
| Display & Interface Controllers | - |
| Series | MPC86xx |
| Core Processor | PowerPC e600 |
| Base Part Number | MC8641 |

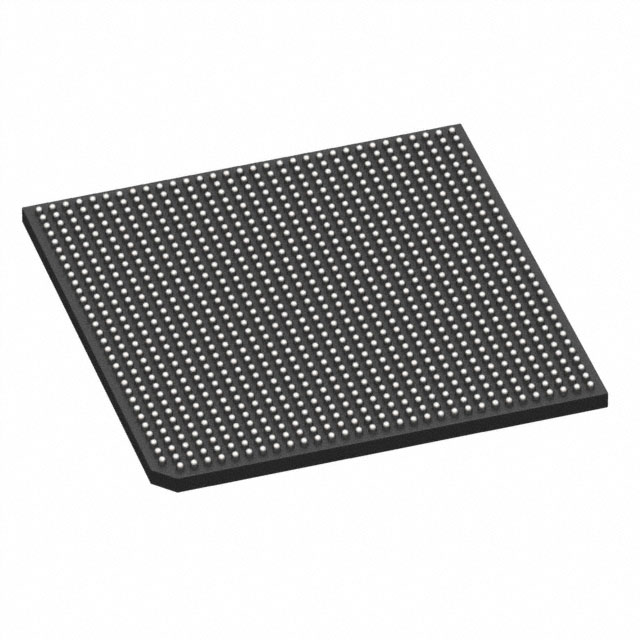

| Package / Case | 1023-BCBGA, FCCBGA |
| Security Features | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Meta Part Number | MC8641DVU1500KE-ND |
| Additional Interfaces | DUART, HSSI, I²C, RapidIO |
| Voltage - I/O | 1.8V, 2.5V, 3.3V |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Speed | 1.5GHz |
| Graphics Acceleration | No |
| Detailed Description | PowerPC e600 Microprocessor IC MPC86xx 2 Core, 32-Bit 1.5GHz 1023-FCCBGA (33x33) |
| Ethernet | 10/100/1000 Mbps (4) |
| Supplier Device Package | 1023-FCCBGA (33x33) |
| USB | - |
| Number of Cores/Bus Width | 2 Core, 32-Bit |
| Co-Processors/DSP | - |
| RAM Controllers | DDR, DDR2 |
Таблицы данных: Work in prgress, stay tuned!
