Категория
Embedded - System On Chip (SoC)
Производитель
Intel
RoHS
YES
Certification
Доставка
Оплата
| TYPE | DESCRIPTION |

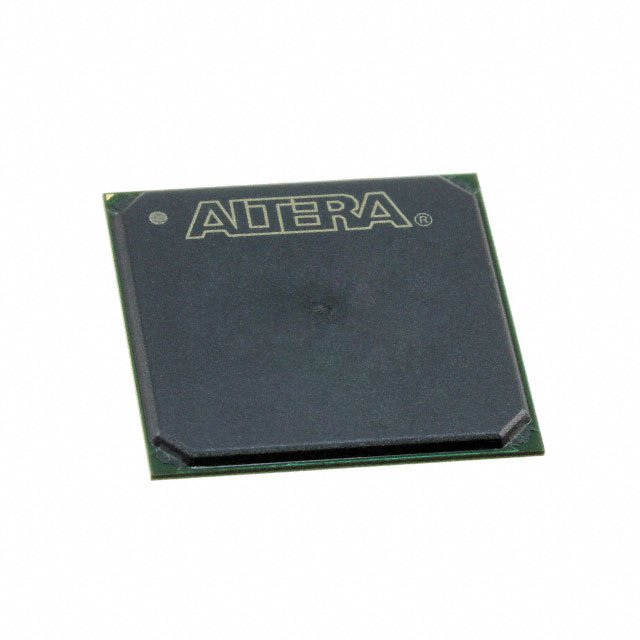

| Part Number: | 5CSXFC4C6U23C6N |
| Description: | IC FPGA 224 I/O 672UBGA |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Architecture | MCU, FPGA |
| Detailed Description | Dual ARM® Cortex®-A9 MPCore™ with CoreSight™ System On Chip (SOC) IC Cyclone® V SX FPGA - 40K Logic Elements 64KB 925MHz 672-UBGA (23x23) |
| Number of I/O | MCU - 181, FPGA - 145 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Primary Attributes | FPGA - 40K Logic Elements |
| Other Names | 544-3017 |
| RAM Size | 64KB |
| Operating Temperature | 0°C ~ 85°C (TJ) |
| Series | Cyclone® V SX |
| Peripherals | DMA, POR, WDT |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Manufacturer Standard Lead Time | 15 Weeks |
| Package / Case | 672-FBGA |
| Core Processor | Dual ARM® Cortex®-A9 MPCore™ with CoreSight™ |
| Base Part Number | 5CSXFC4 |
| Connectivity | CANbus, EBI/EMI, Ethernet, I²C, MMC/SD/SDIO, SPI, UART/USART, USB OTG |
| Meta Part Number | 544-3017-ND |
| Packaging | Tray |
| Speed | 925MHz |
| Flash Size | - |
| Supplier Device Package | 672-UBGA (23x23) |
Таблицы данных: Work in prgress, stay tuned!
