Категория
Transistors - FETs, MOSFETs - Arrays
Производитель
Diodes Incorporated
RoHS
YES
Certification
Доставка
Оплата
| TYPE | DESCRIPTION |

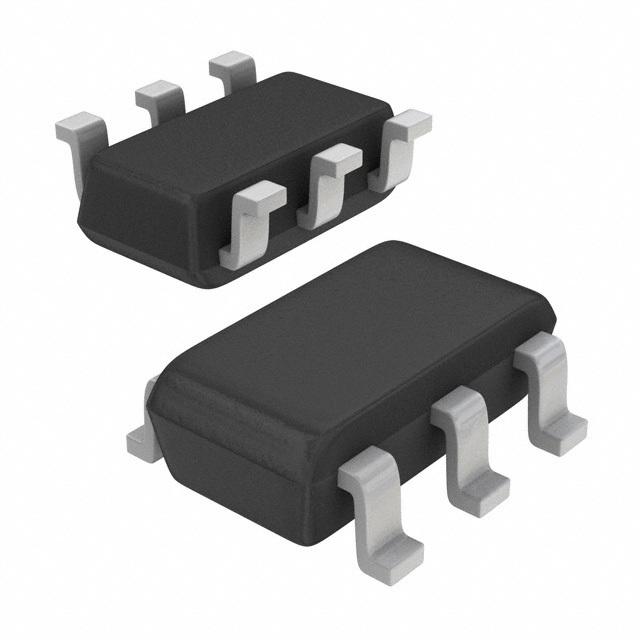

| Part Number: | ZXMN2088DE6TA |
| Description: | MOSFET 2N-CH 20V 1.7A SOT-26 |
| Lead Free Status / RoHS Status: | |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 |
| Manufacturer Standard Lead Time | 20 Weeks |
| Drain to Source Voltage (Vdss) | 20V |
| Power - Max | 1.1W |
| Gate Charge (Qg) (Max) @ Vgs | 3.8nC @ 4.5V |
| FET Type | 2 N-Channel (Dual) |
| Series | - |
| Other Names | ZXMN2088DE6TADI |
| Current - Continuous Drain (Id) @ 25°C | 1.7A |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Input Capacitance (Ciss) (Max) @ Vds | 279pF @ 10V |
| Detailed Description | Mosfet Array 2 N-Channel (Dual) 20V 1.7A 1.1W Surface Mount SOT-23-6 |
| FET Feature | Logic Level Gate |
| Packaging | Tape & Reel (TR) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Supplier Device Package | SOT-23-6 |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Meta Part Number | ZXMN2088DE6TADI-ND |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Rds On (Max) @ Id, Vgs | 200 mOhm @ 1A, 4.5V |
Таблицы данных: Work in prgress, stay tuned!
