Категория
Transistors - IGBTs - Single
Производитель
STMicroelectronics
RoHS
YES
Certification
Доставка
Оплата
| TYPE | DESCRIPTION |

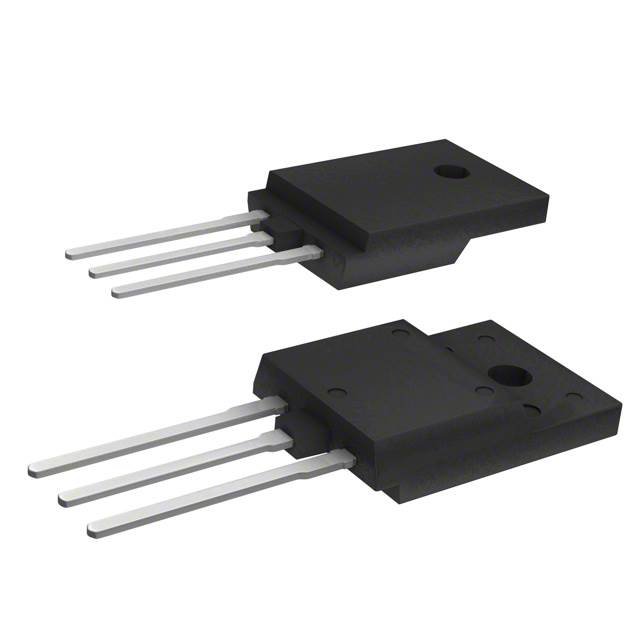

| Part Number: | STGFW80V60F |
| Description: | IGBT 600V 120A 79W TO-3PF |
| Lead Free Status / RoHS Status: | |
| Meta Part Number | 497-15008-5-ND |
| Voltage - Collector Emitter Breakdown (Max) | 600V |
| Test Condition | 400V, 80A, 10 Ohm, 15V |
| Vce(on) (Max) @ Vge, Ic | 2.3V @ 15V, 80A |
| Packaging | Tube |
| Td (on/off) @ 25°C | 60ns/220ns |
| Detailed Description | IGBT Trench Field Stop 600V 120A 79W Through Hole TO-3PF |
| Current - Collector (Ic) (Max) | 120A |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Package / Case | TO-3P-3 Full Pack |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Series | - |
| IGBT Type | Trench Field Stop |
| Other Names | 497-15008-5 |
| Power - Max | 79W |
| Current - Collector Pulsed (Icm) | 240A |
| Supplier Device Package | TO-3PF |
| Mounting Type | Through Hole |
| Switching Energy | 1.8mJ (on), 1mJ (off) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Gate Charge | 448nC |
| Input Type | Standard |
Таблицы данных: Work in prgress, stay tuned!
