Категория
Thyristors - TRIACs
Производитель
Hamlin / Littelfuse
RoHS
YES
Certification
Доставка
Оплата
| TYPE | DESCRIPTION |

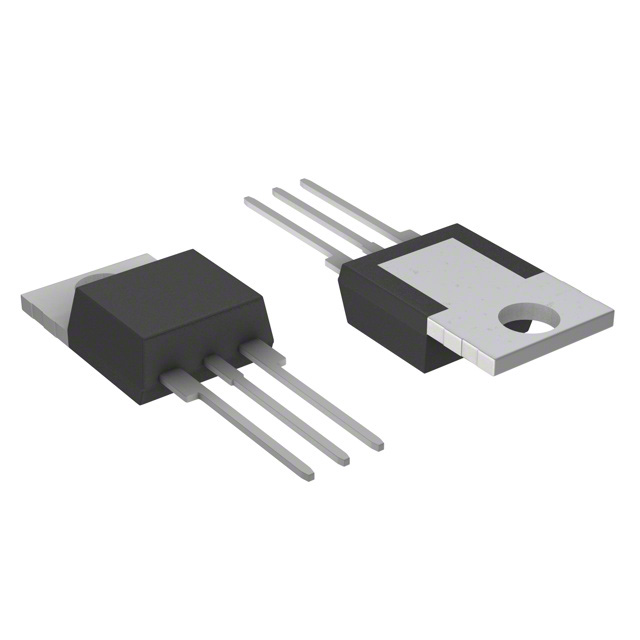

| Part Number: | QK008RH4 |
| Description: | TRIAC ALTERNISTOR 1KV 8A TO220 |
| Lead Free Status / RoHS Status: | |
| Supplier Device Package | TO-220 Non-Isolated Tab |
| Package / Case | TO-220-3 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Meta Part Number | QK008RH4-ND |
| Voltage - Off State | 1kV |
| Current - Gate Trigger (Igt) (Max) | 35mA |
| Series | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Detailed Description | TRIAC Alternistor - Snubberless 1kV 8A Through Hole TO-220 Non-Isolated Tab |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 83A, 100A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.3V |
| Configuration | Single |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Current - On State (It (RMS)) (Max) | 8A |
| Triac Type | Alternistor - Snubberless |
| Packaging | Bulk |
| Mounting Type | Through Hole |
| Current - Hold (Ih) (Max) | 35mA |
Таблицы данных: Work in prgress, stay tuned!
