Категория
Transistors - Bipolar (BJT) - Single
Производитель
Nexperia
RoHS
YES
Certification
Доставка
Оплата
| TYPE | DESCRIPTION |

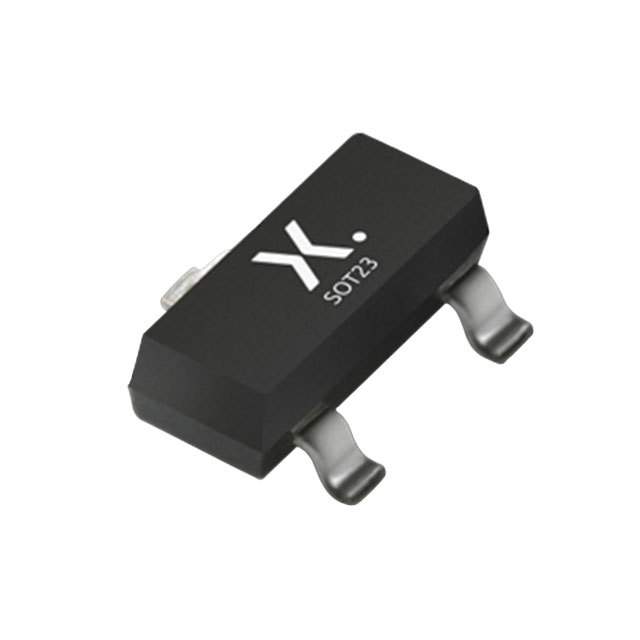

| Part Number: | PMBTA45,215 |
| Description: | TRANS NPN 500V 0.15A SOT23 |
| Lead Free Status / RoHS Status: | |
| Current - Collector Cutoff (Max) | 100nA |
| Current - Collector (Ic) (Max) | 150mA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 50 @ 50mA, 10V |
| Other Names | 1727-5332-2 568-6770-2 568-6770-2-ND 934063606215 PMBTA45,215-ND PMBTA45215 |
| Detailed Description | Bipolar (BJT) Transistor NPN 500V 150mA 35MHz 300mW Surface Mount TO-236AB (SOT23) |
| Mounting Type | Surface Mount |
| Base Part Number | PMBTA45 |
| Series | - |
| Power - Max | 300mW |
| Packaging | Tape & Reel (TR) |
| Voltage - Collector Emitter Breakdown (Max) | 500V |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Frequency - Transition | 35MHz |
| Supplier Device Package | TO-236AB (SOT23) |
| Transistor Type | NPN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Operating Temperature | 150°C (TJ) |
| Meta Part Number | 1727-5332-2-ND |
| Vce Saturation (Max) @ Ib, Ic | 90mV @ 6mA, 50mA |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Таблицы данных: Work in prgress, stay tuned!
