Категория
Thyristors - SCRs - Modules
Производитель
IXYS / Littelfuse
RoHS
YES
Certification
Доставка
Оплата
| TYPE | DESCRIPTION |

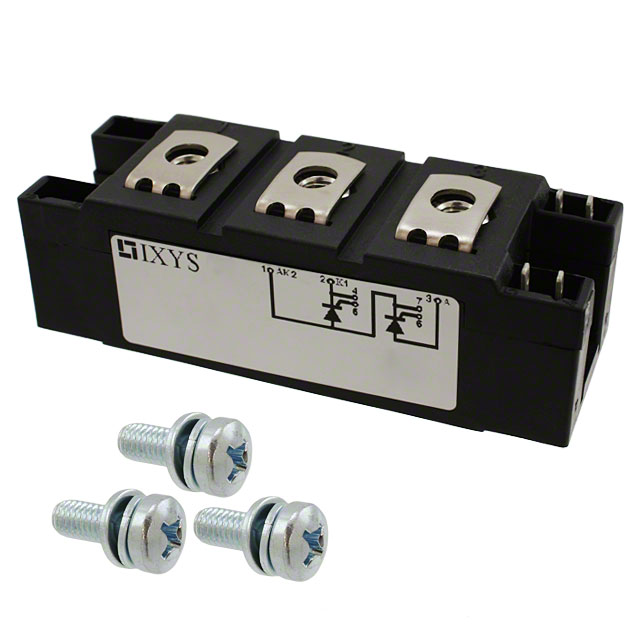

| Part Number: | MCD162-18IO1 |
| Description: | MOD THYRISTOR/DIODE 1800V Y4-M6 |
| Lead Free Status / RoHS Status: | |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Other Names | MCD16218IO1 |
| Current - On State (It (RMS)) (Max) | 300A |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Manufacturer Standard Lead Time | 32 Weeks |
| Series | - |
| Current - On State (It (AV)) (Max) | 190A |
| Base Part Number | MC*162 |
| Mounting Type | Chassis Mount |
| Packaging | Bulk |
| Voltage - Off State | 1.8kV |
| Package / Case | Y4-M6 |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 6000A, 6400A |
| Structure | Series Connection - SCR/Diode |
| Current - Gate Trigger (Igt) (Max) | 150mA |
| Meta Part Number | MCD162-18IO1-ND |
| Current - Hold (Ih) (Max) | 200mA |
| Number of SCRs, Diodes | 1 SCR, 1 Diode |
| Detailed Description | SCR Module 1.8kV 300A Series Connection - SCR/Diode Chassis Mount Y4-M6 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Voltage - Gate Trigger (Vgt) (Max) | 2.5V |
Таблицы данных: Work in prgress, stay tuned!
