| TYPE | DESCRIPTION |

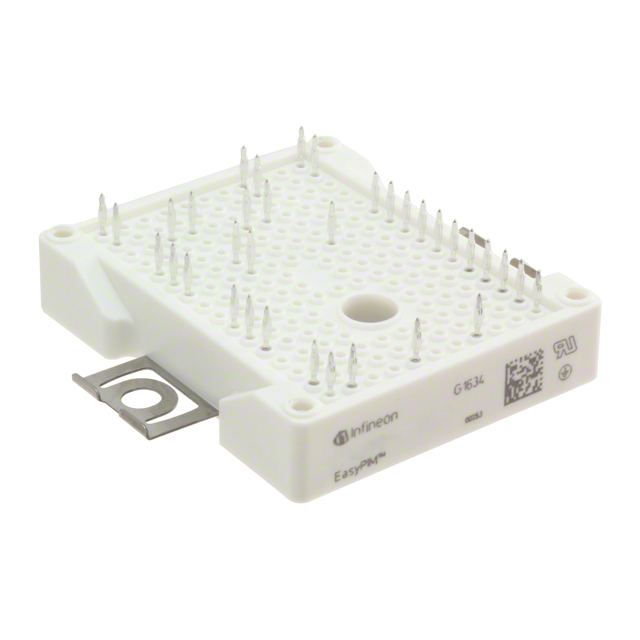

| Part Number: | FP35R12W2T4B11BOMA1 |
| Description: | IGBT MODULE 1200V 35A |
| Lead Free Status / RoHS Status: | |
| Vce(on) (Max) @ Vge, Ic | 2.25V @ 15V, 35A |
| Input | Standard |
| Current - Collector (Ic) (Max) | 54A |
| Current - Collector Cutoff (Max) | 1mA |
| Detailed Description | IGBT Module Trench Field Stop Three Phase Inverter 1200V 54A 215W Chassis Mount Module |
| Package / Case | Module |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Series | - |
| Input Capacitance (Cies) @ Vce | 2nF @ 25V |
| Power - Max | 215W |
| Supplier Device Package | Module |
| Mounting Type | Chassis Mount |
| Configuration | Three Phase Inverter |
| IGBT Type | Trench Field Stop |
| Meta Part Number | FP35R12W2T4B11BOMA1-ND |
| NTC Thermistor | Yes |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Other Names | FP35R12W2T4_B11 FP35R12W2T4_B11-ND SP000413970 |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Voltage - Collector Emitter Breakdown (Max) | 1200V |
