Категория
Transistors - Bipolar (BJT) - Arrays
Производитель
Panasonic
RoHS
YES
Certification
Доставка
Оплата
| TYPE | DESCRIPTION |

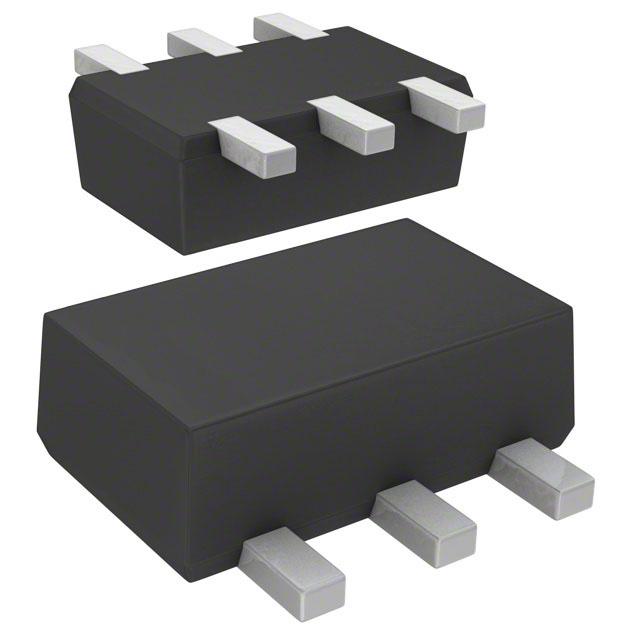

| Part Number: | DMA506010R |
| Description: | TRANS 2PNP 50V 0.1A SMINI6 |
| Lead Free Status / RoHS Status: | |
| Package / Case | 6-SMD, Flat Leads |
| Packaging | Cut Tape (CT) |
| Current - Collector Cutoff (Max) | 100µA |
| Voltage - Collector Emitter Breakdown (Max) | 50V |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Base Part Number | DMA50601 |
| Meta Part Number | DMA506010RCT-ND |
| Detailed Description | Bipolar (BJT) Transistor Array 2 PNP (Dual) 50V 100mA 150MHz 300mW Surface Mount SMini6-F3-B |
| Current - Collector (Ic) (Max) | 100mA |
| Vce Saturation (Max) @ Ib, Ic | 500mV @ 10mA, 100mA |
| Mounting Type | Surface Mount |
| Series | - |
| Other Names | DMA506010RCT |
| Frequency - Transition | 150MHz |
| Supplier Device Package | SMini6-F3-B |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 210 @ 2mA, 10V |
| Manufacturer Standard Lead Time | 11 Weeks |
| Power - Max | 300mW |
| Transistor Type | 2 PNP (Dual) |
| Operating Temperature | 150°C (TJ) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Таблицы данных: Work in prgress, stay tuned!
