Категория
Transistors - Bipolar (BJT) - Arrays
Производитель
AMI Semiconductor/onsemi
RoHS
YES
Certification
Доставка
Оплата
| TYPE | DESCRIPTION |

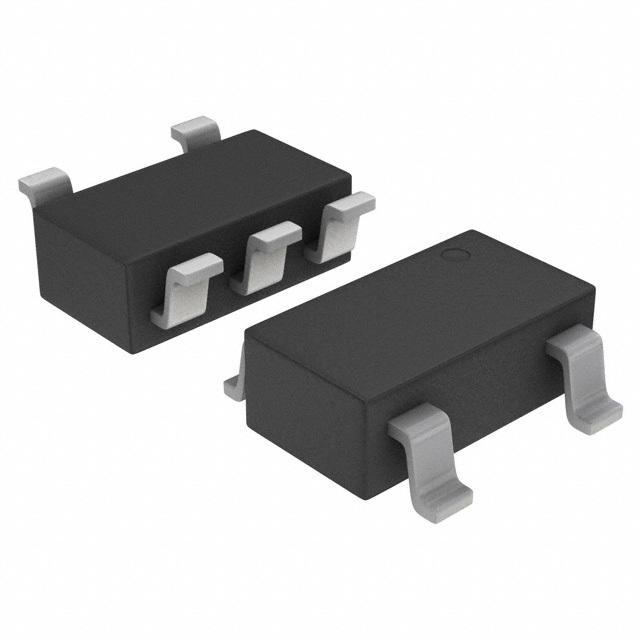

| Part Number: | CPH5518-TL-H |
| Description: | TRANS NPN/PNP 80V/50V 1A 5CPH |
| Lead Free Status / RoHS Status: | |
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| Mounting Type | Surface Mount |
| Detailed Description | Bipolar (BJT) Transistor Array NPN, PNP (Emitter Coupled) 80V, 50V 1A 420MHz 1.2W Surface Mount 5-CPH |
| Operating Temperature | 150°C (TJ) |
| Other Names | CPH5518-TL-H-ND CPH5518-TL-HOSTR |
| Meta Part Number | CPH5518-TL-HOSTR-ND |
| Vce Saturation (Max) @ Ib, Ic | 190mV @ 10mA, 500mA |
| Packaging | Tape & Reel (TR) |
| Power - Max | 1.2W |
| Transistor Type | NPN, PNP (Emitter Coupled) |
| Supplier Device Package | 5-CPH |
| Frequency - Transition | 420MHz |
| Voltage - Collector Emitter Breakdown (Max) | 80V, 50V |
| Package / Case | SC-74A, SOT-753 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Manufacturer Standard Lead Time | 4 Weeks |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 200 @ 100mA, 2V |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Series | - |
| Current - Collector (Ic) (Max) | 1A |
Таблицы данных: Work in prgress, stay tuned!
