Категория
Thyristors - SCRs
Производитель
WeEn Semiconductors Co., Ltd
RoHS
YES
Certification
Доставка
Оплата
| TYPE | DESCRIPTION |

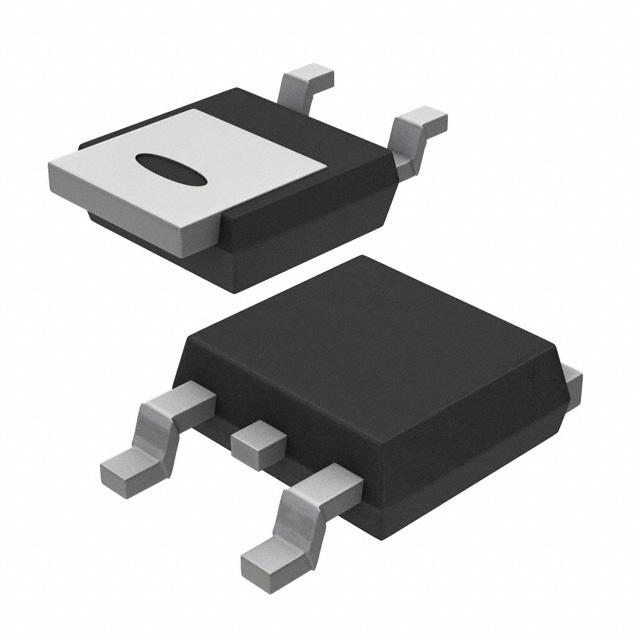

| Part Number: | BT151S-800R,118 |
| Description: | THYRISTOR 800V 12A DPAK |
| Lead Free Status / RoHS Status: | |
| Mounting Type | Surface Mount |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Meta Part Number | 1740-1072-1-ND |
| Current - On State (It (RMS)) (Max) | 12A |
| Current - Gate Trigger (Igt) (Max) | 15mA |
| Packaging | Cut Tape (CT) |
| Voltage - On State (Vtm) (Max) | 1.75V |
| Detailed Description | SCR 800V 12A Standard Recovery Surface Mount DPAK |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 120A, 132A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.5V |
| Current - On State (It (AV)) (Max) | 7.5A |
| SCR Type | Standard Recovery |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Current - Hold (Ih) (Max) | 20mA |
| Other Names | 1740-1072-1 568-11042-1 568-11042-1-ND |
| Supplier Device Package | DPAK |
| Series | - |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Off State | 800V |
| Current - Off State (Max) | 500µA |
Таблицы данных: Work in prgress, stay tuned!
