Категория
Transistors - Bipolar (BJT) - RF
Производитель
Freescale / NXP Semiconductors
RoHS
YES
Certification
Доставка
Оплата
| TYPE | DESCRIPTION |

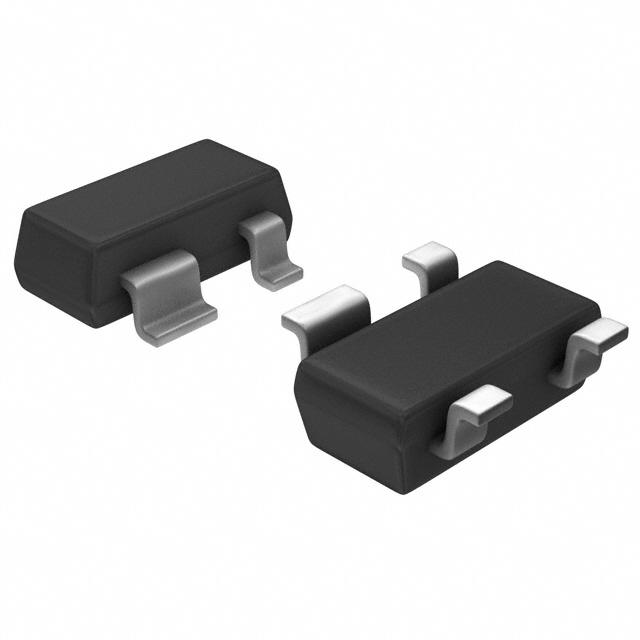

| Part Number: | BFU530VL |
| Description: | TRANS RF NPN 12V 40MA SOT-143B |
| Lead Free Status / RoHS Status: | |
| Other Names | 934067703235 |
| Transistor Type | NPN |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Power - Max | 450mW |
| Frequency - Transition | 11GHz |
| Package / Case | TO-253-4, TO-253AA |
| Base Part Number | BFU530 |
| Meta Part Number | BFU530VL-ND |
| Current - Collector (Ic) (Max) | 40mA |
| Packaging | Tape & Reel (TR) |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Noise Figure (dB Typ @ f) | 1.1dB @ 1.8GHz |
| Gain | 15.5dB |
| Supplier Device Package | SOT-143B |
| Detailed Description | RF Transistor NPN 12V 40mA 11GHz 450mW Surface Mount SOT-143B |
| Series | - |
| Voltage - Collector Emitter Breakdown (Max) | 12V |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 60 @ 10mA, 8V |
Таблицы данных: Work in prgress, stay tuned!
