Категория
Dual-frequency GNSS module
Производитель
ZKMICRO
RoHS
YES
Certification
Доставка
Оплата

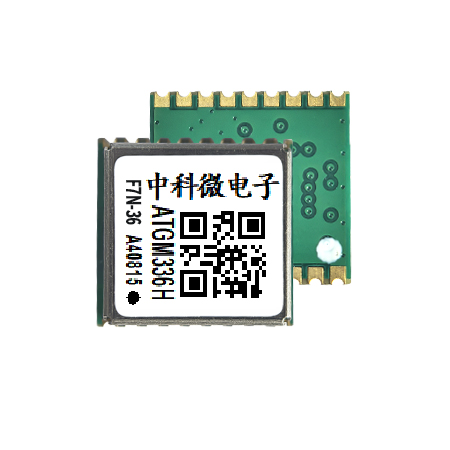

| Part Number | ATGM336H-F7N36 |
| Category | Dual-frequency GNSS module |
| Manufacturer | ZKMICRO |
| Supported satellite frequencies | B1I+B1C+B2a+L1+L5+E1+E5a |
| BDS | B1I, B1C, B2a |
| GPS/QZSS | L1, L5 |
| GALILEO | E1, E5a |
| GLONASS | L1 |
| SBAS | L1 |
| Sensitivity | As Follows |
| Cold start (dBm) | -148 |
| Hot start (dBm) | -156 |
| Tracking (dBm) | -162 |
| Recapture (dBm) | -160 |
| Voltage - Supply | 2.7~3.6V |
| Power Consumption | [email protected] |
| Output Frequency | 1Hz(Max 10Hz) |
| Default baud rate | 115200 |
| Data Format | NMEA0183 |
| Package | 10.1mm×9.7mm×2.1mm |
| Operating Temperature | -40°C ~ 85°C |
Таблицы данных: Work in prgress, stay tuned!
