Категория
Single frequency multi-mode navigation module
Производитель
ZKMICRO
RoHS
YES
Certification
Доставка
Оплата

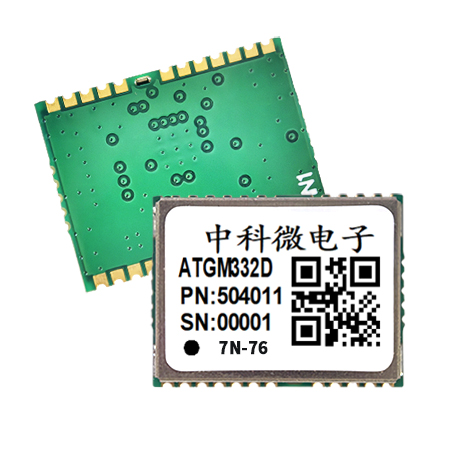

| Part Number | ATGM332D-7N76 |
| Category | Single frequency multi-mode navigation module |
| Manufacturer | ZKMICRO |
| Supported satellite frequencies | BDS+GPS+GALILEO+GLONASS |
| BDS | B1I, B1C |
| GPS/QZSS | L1 |
| GALILEO | E1 |
| GLONASS | L1 |
| SBAS | L1 |
| Sensitivity | As Follows |
| Cold start (dBm) | -148 |
| Hot start (dBm) | -156 |
| Tracking (dBm) | -162 |
| Recapture (dBm) | -160 |
| Voltage - Supply | 2.7~3.6V |
| Power Consumption | [email protected] |
| Output Frequency | 1Hz(Max 10Hz) |
| Default baud rate | 115200 |
| Data Format | NMEA0183 |
| Package | 16.0mm×12.2mm×2.4mm |
| Operating Temperature | -40°C ~ 85°C |
Таблицы данных: Work in prgress, stay tuned!
